P&R 1945 5c José de San Martin

[Rein]

Rein:
I saw your enlargements of the the typo and offset 5c San Martín and I can tell you that the laurel branches in the typos do not show fruits (or sprouts?) The offset version do show them, represented by the little circles among the leaves. In my book Sistemas de Impresión I do emntion that difference.

Vi sus ampliaiones del 5c San Martín tipo y offset y le puedo decir que las ramas de laurel en los tipografiados no muestran los frutos (o brotes). La versión offset si las muestra, representadas por los pequeños circulitos entre las hojas. En mi libro Sistemas de Impresión yo destaco esa diferencia.
Saludos,
Merlo

José.

I did read it in your book [page 27] but I think it was about time to give an enlargement of that detail.

Pettigiani in the mean time has discovered the break in the frame [broken stairs he calls it] for the offset-litho 5c JSM!

[stamps9407]

I am working with this stamp

I have the following stamps...



at first sight

r1c1
r1c2
r1c3 typo
r2c1 typo / chalky paper
r2c2
r2c3
r2c4
r2c5 typo / chalky paper

This is the picture from the back



So far I have the following stamps with paper type identified (can be wrong)

r1c1 MI5 (M)
r1c2 SF1
r1c3 SF1
r2c1 TI3 or TI4 (M)
r2c2 SF1
r2c3 NN (m)
r2c4 MI5 (M)
r2c5 TI2 (m)

any feedback appreciated

Click here for a high resolution jpg

I'll post the images with the analysis
Sergio

PD: based on Watermark position I did some correction to those with position (M)

[Rein]

Sergio,

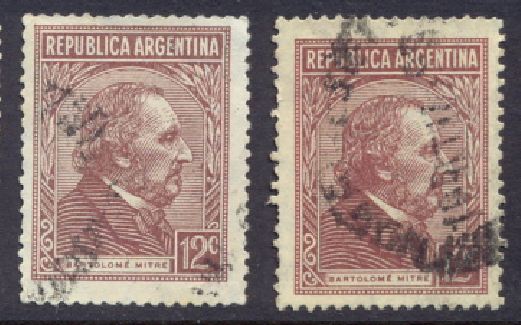

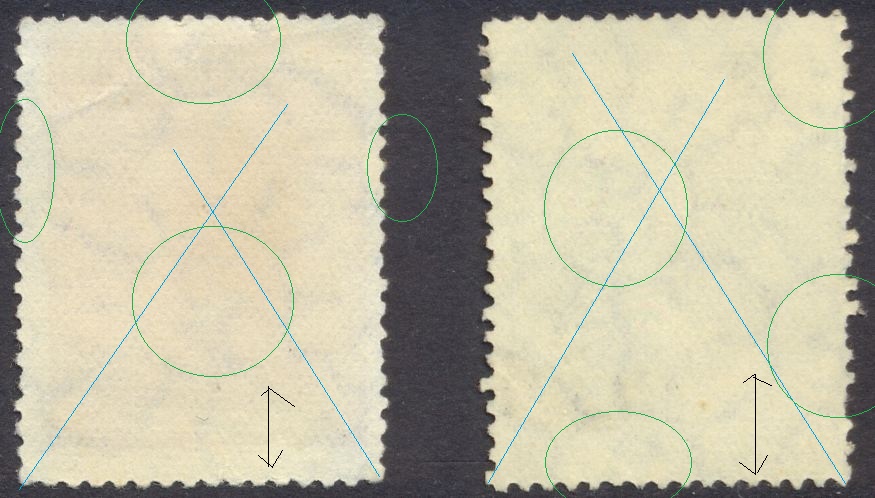

the 12c Mitre on MI 1:





saludos, Rein

[stamps9407]

I scanned those stamps to save some scanning time. Those stamps are only present in MI1 paper. But is giving me some trouble are the San Martin stamps

Thanks

Sergio

[Rein]

I scanned those stamps to save some scanning time. Those stamps are only present in MI1 paper. But is giving me some trouble are the San Martin stamps

Thanks

Sergio

Sergio,

the Zárate papers are awfully difficult to distinguish! But I will try. On the other hand I will need a better scan of the fronts of the stamps! The one you gave is good for nothing...

saludos, Rein

[stamps9407]

Rein, yeah to reduce it to a width of 900 pixels reduce the quality a lot

Here you will find a 300dpi scan. If it is not good enough I'll need to scan it again.

Thanks
Sergio

[Rein]

Rein, yeah to reduce it to a width of 900 pixels reduce the quality a lot

Here you will find a 300dpi scan. If it is not good enough I'll need to scan it again.

Thanks
Sergio

Sergio,

there are 2 types in the offset-litho and 1 type in the typography versions. You need better scans 1200 or more!

saludos, Rein

P.S.

I stopped scanning below 1200 dpi! You can always enlarge the better scan on the screen and take a screen grab for the details you need! Then, eventually you can get rid of your heavy scans.....

[Rein]

Sergio,


re-read

The 5c José de San Martin stamps exist in both offset-litho and in typography. And as to the offset-litho according to Samuel Klass there are even subdivisions of this offset-litho a.o. the hueco-offset!

No catalogue-maker indicates that there is a basic difference in design!

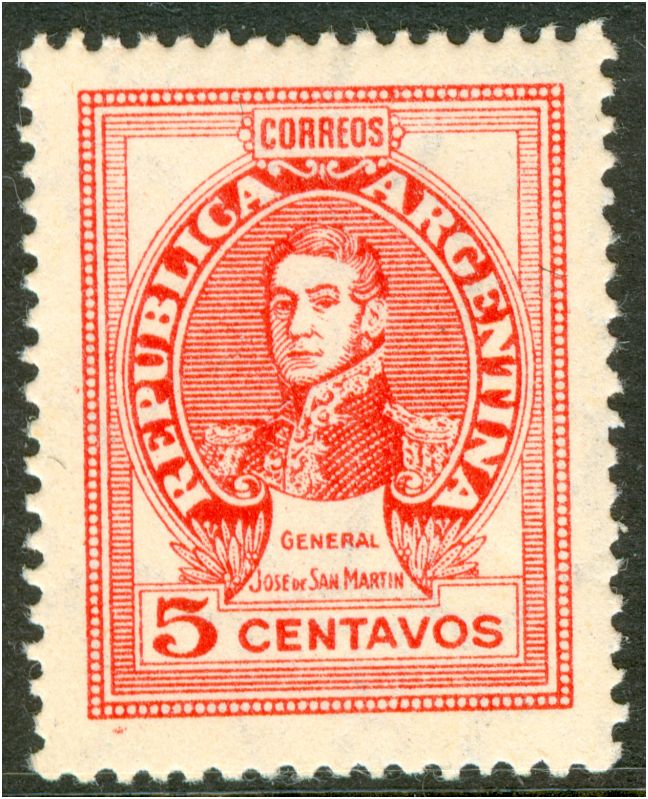

In offset-litho in full:

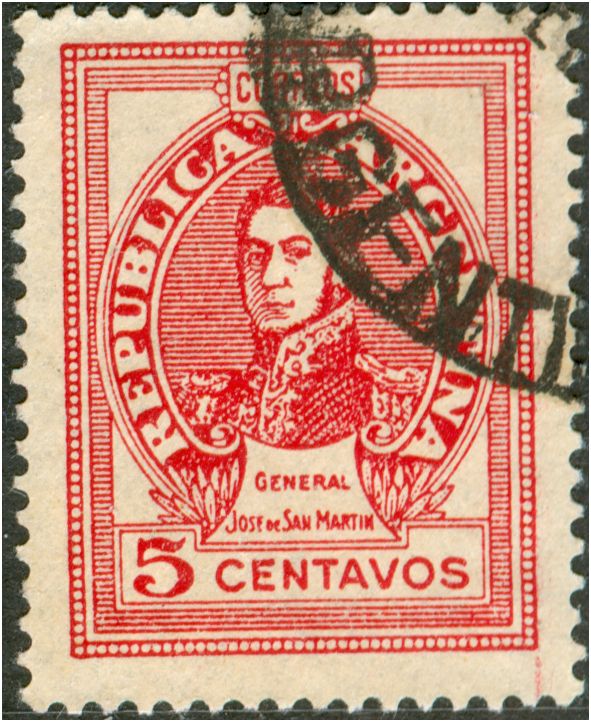

in typography in full:

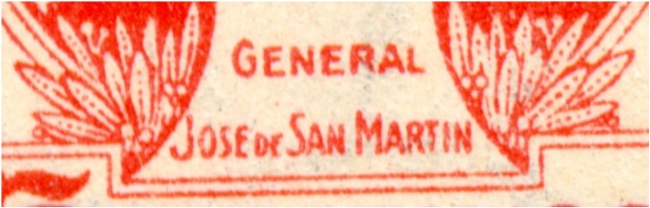

in offset-litho the fragment:

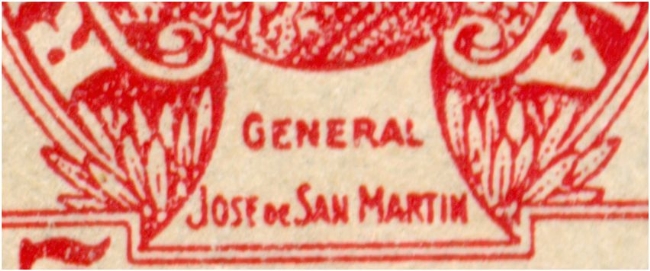

in typography the fragment:

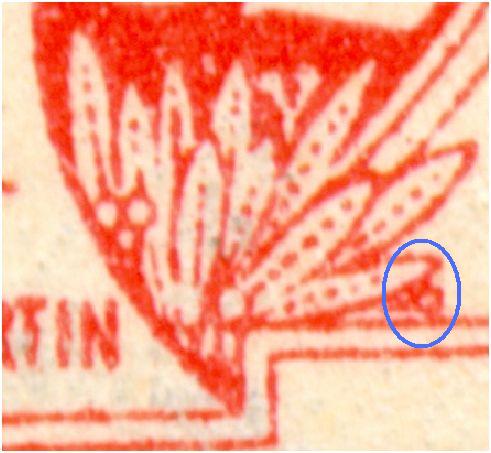

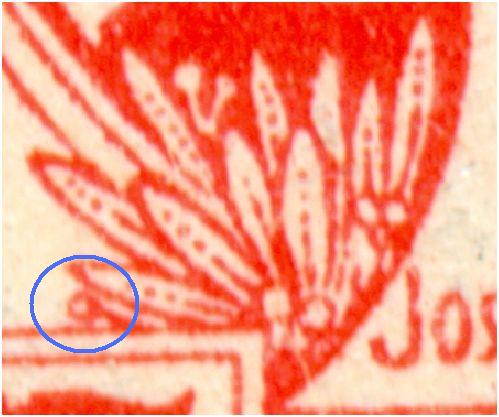

In offset-litho the details of the leaves that show nice little circles:

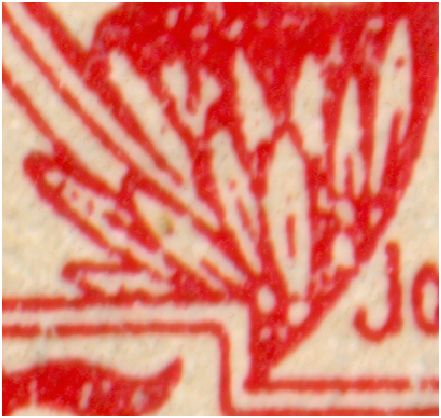

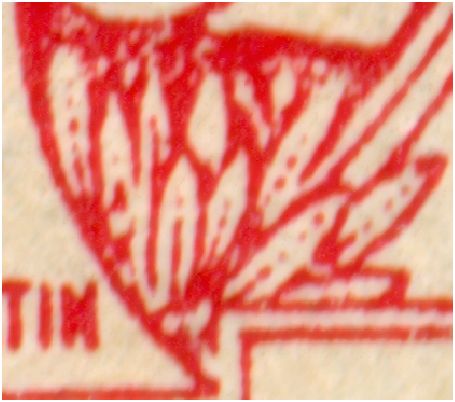

In typography the details of the leaves:

[stamps9407]

I don't have much time today, I'll do it tomorrow. In the meanwhile a question:

I already read this article but I had discarded because I didn't find a relationship between this and the paper. Is there a relation other than knowing what printing method was used on each paper?

Regards
Sergio

[Rein]

I don't have much time today, I'll do it tomorrow. In the meanwhile a question:

I already read this article but I had discarded because I didn't find a relationship between this and the paper. Is there a relation other than knowing what printing method was used on each paper?

Regards
Sergio

Sergio,

why I am pointing this out is because in studying the watermarks you should always separate the typography printings from the offset-litho. Do not mix them!!! That goes for all stamps in the P&R I series [1c Sarmiento, 5c Moreno, 5c JSM, 10c Rivadavia, 20c Torito] and for the later JSM [20c, 40c], JSM [2p-20p]....

I got the impression from your first scan that only 3 stamps in the bottom row are offset-litho, but I could not be sure due to the low dpi!

I'll await your new scan!

saludos, Rein

[stamps9407]

En este link el scan de 1200dpi y 18 MB, I've changed the order. I move r2c5 to r1c4, but I keep the nomenclature of the previous post.

Below a file per stamp.

r1c1
r1c2
r1c3
r2c1
r2c2
r2c3
r2c4
r2c5 it is now r1c4

Regards
Sergio

[Rein]

Sergio,

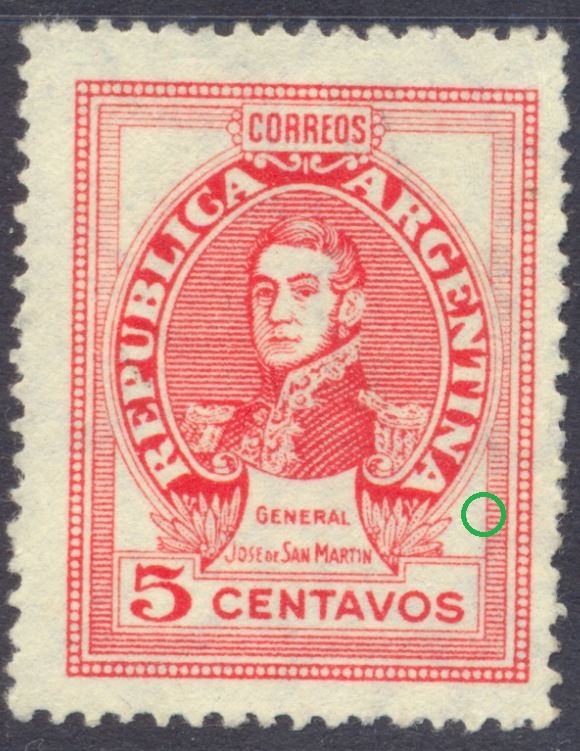

first some offset-litho stamps:

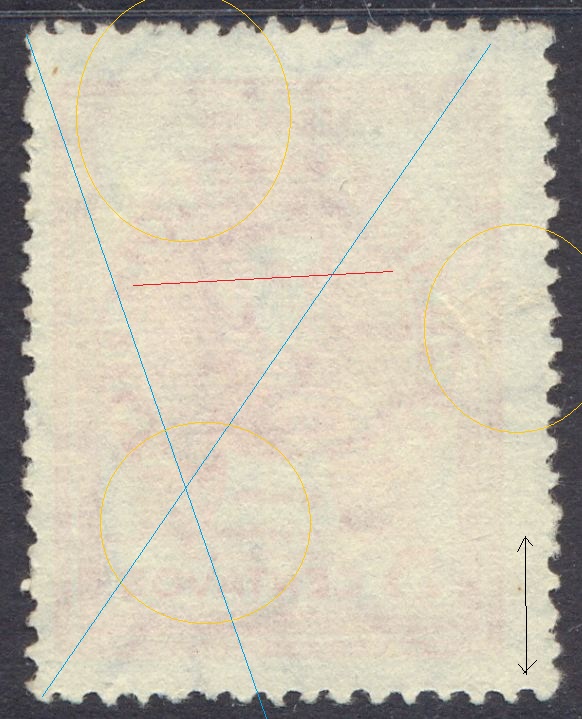

The red lines indicate the "rayado" !

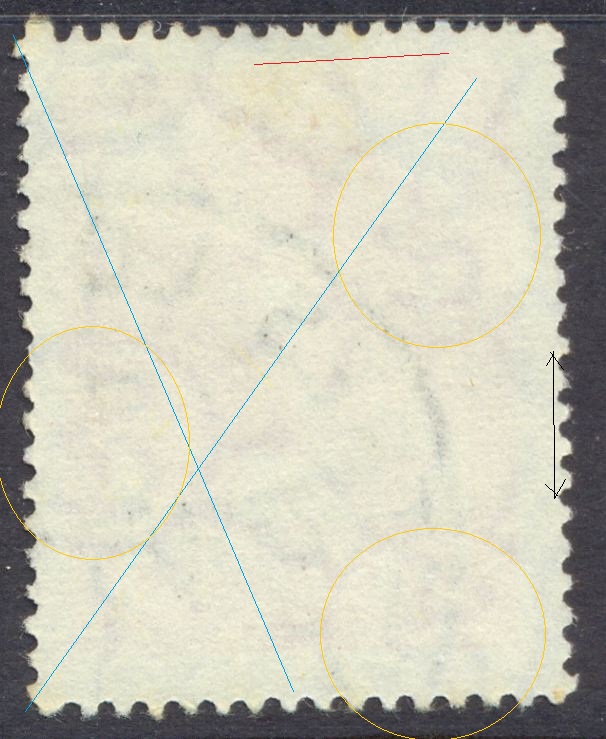

Parallel watermark, direction of paper vertical, Wiggins Teape [English] uncoated paper - mate importado rayado vertical!

Both stamps are type 2 - broken frame at the right!

to be continued ...

[Rein]

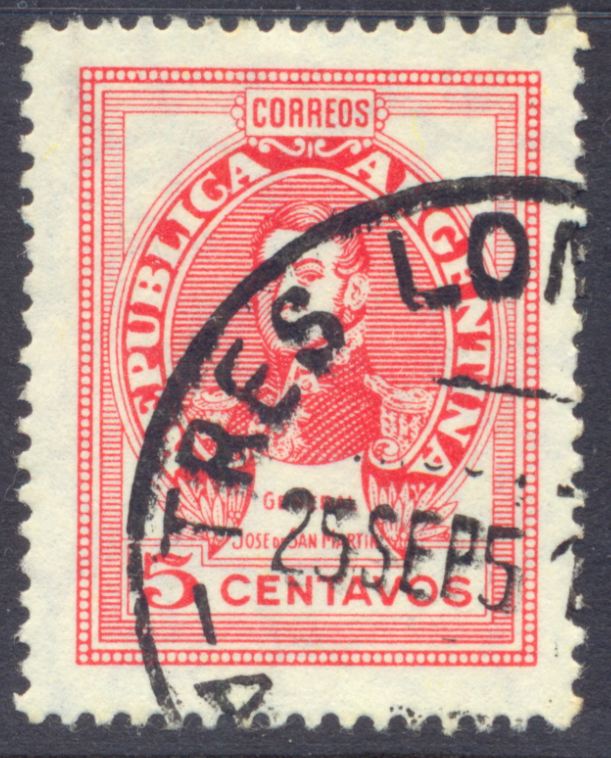

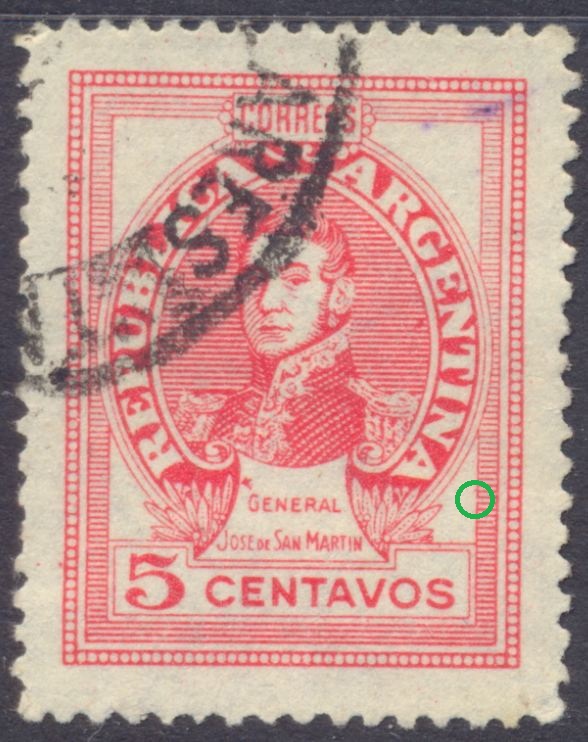

The next offset-litho stamp:

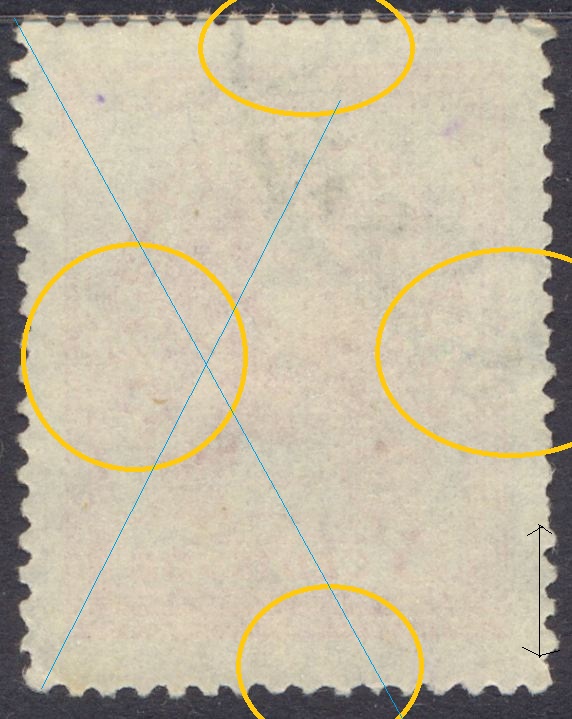

Orthogonal watermark, symmetrical paper wire, direction of paper vertical, Zárate uncoated paper - ZA 2!

The stamps has type 2 - broken frame at the right!

to be continued ...

[Rein]

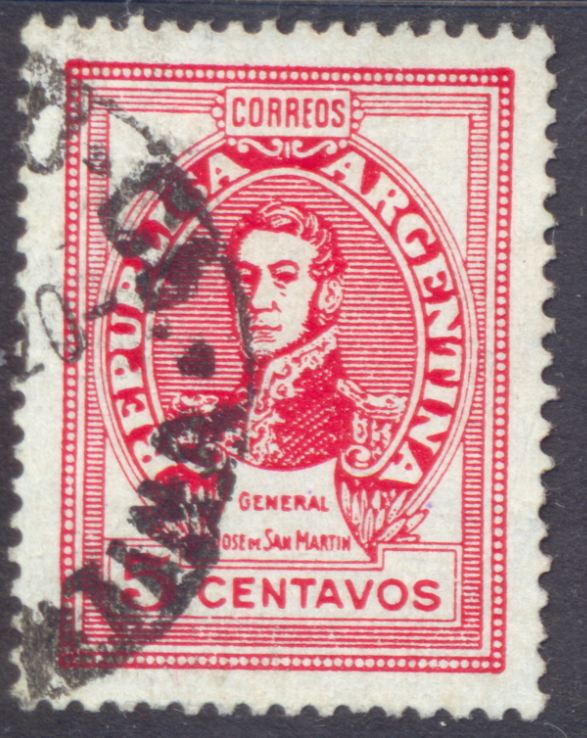

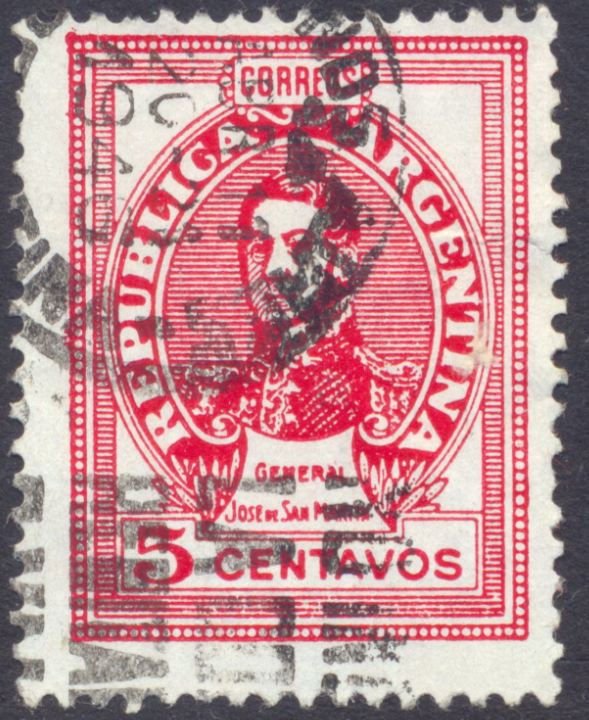

The first coated typography stamp:

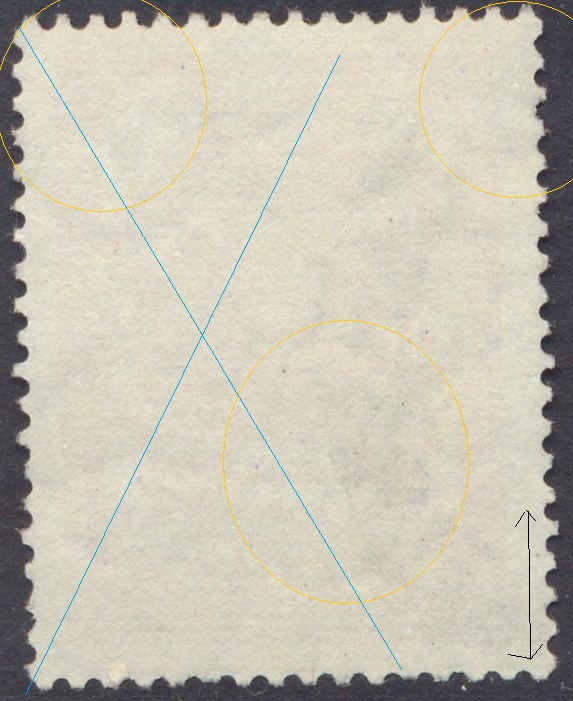

Orthogonal watermark, symmetrical paper wire, direction of paper vertical, USA coated paper - density 30/16!

to be continued ...

[Rein]

The second coated typography stamp:

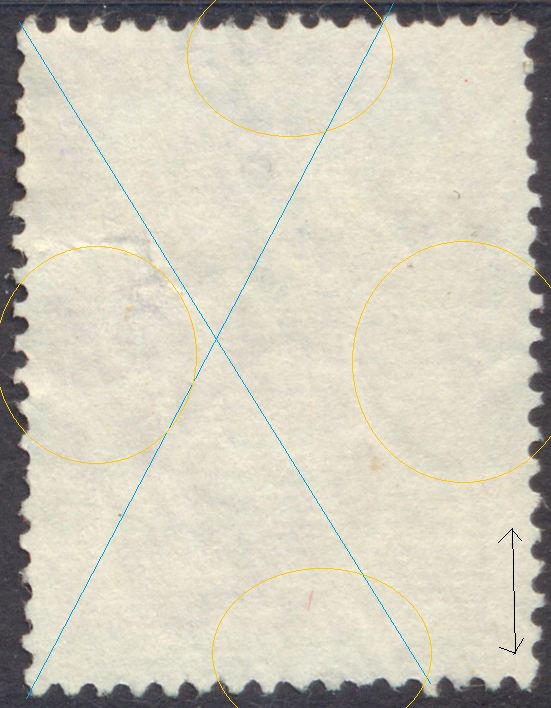

Orthogonal watermark, symmetrical paper wire, direction of paper vertical, USA coated paper - density 30/16?!

Guillermo is making a great study of these Norteamericano papers! The second density may vary! I am not sure it is 16 horizontal lines per cm!

to be continued ...
